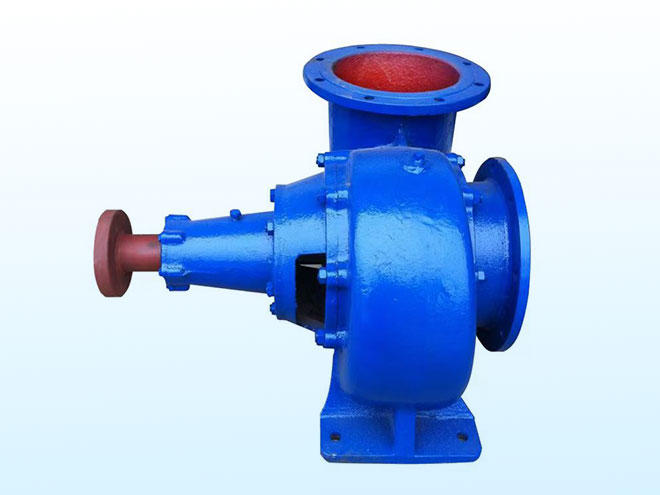

Hw混流泵
所属分类：清水泵
浏览次数：96
二维码：
添加时间：2024-05-29
简要说明：
浏览次数：96
二维码：
添加时间：2024-05-29
简要说明：
HW型泵为卧式、单级、单吸、涡壳式混流泵。适用于输送清水或物理、化学性质类似于水的其它液体。被输送液体温度不宜高于50℃。广泛用于农田灌溉、工业和城市给排水等多种场合。
HW型泵为卧式、单级、单吸、涡壳式混流泵。适用于输送清水或物理、化学性质类似于水的其它液体。被输送液体温度不宜高于50℃。广泛用于农田灌溉、工业和城市给排水等多种场合。

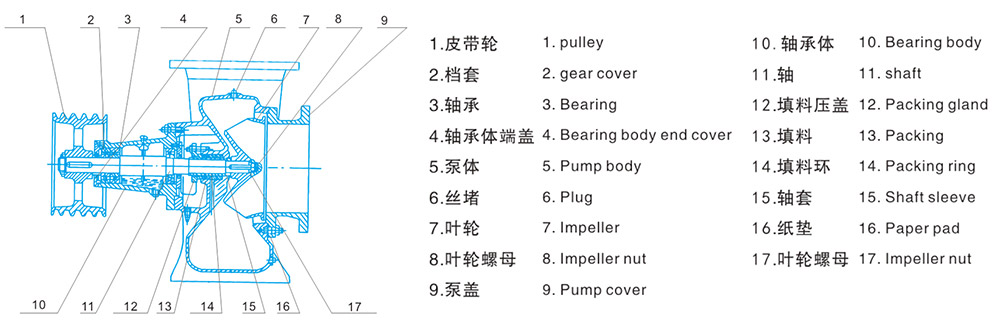

结构图
性能参数表
| 型号 Type | 流量Q Flow | 扬程 Head m | 转速 Speed r/min | 效率η Eficincn % | 功率 Power | 汽蚀余量 (NPSH)cm | ||
| I/s | m³/h | 轴功率 Shatt power | 配用功率Mofer power kw hp/kw | |||||
| 150HW-5 | 38 50 60 | 137 180 216 | 6.1 5.0 3.7 | 1 450 | 75.0 82.0 74.0 | 3.30 2.99 2.94 | 4 | 2.7 |
| 150HW-8 | 38 50 60 | 137 180 216 | 8.7 8.0 6.8 | 1 450 | 82.0 | 4.78 | 5.5 | 2.7 |
| 150HW-12 | 38 50 60 | 137 180 216 | 15.3 12.5 9.7 | 1 450 | 75.0 82.0 78.0 | 7.60 7.47 7.71 | 11 | 6.0 |
| 200HW-5 | 100 | 360 | 5.0 | 1 450 | 81.5 | 6.01 | 7.5 | 4.0 |
| 200HW-8 | 75 100 120 | 270 360 432 | 9.6 8.0 6.0 | 1 450 | 76.0 83.5 75.0 | 9.29 9.39 9.41 | 11 | 4.0 |
| 200HW-12 | 75 100 120 | 270 360 430 | 13.5 12.5 10.8 | 1 450 | 83.5 | 14, 68 | 18.5 | 4.0 |
| 250HW-5 | 150 | 540 | 5.0 | 1 180 | 82.0 | 8.97 | 11 | 4.0 |
| 250HW-8 | 93 123 148 | 335 444 533 | 6.5 5.4 4.1 | 970 | 77.0 84.7 76.0 | 7.67 7.78 7.74 | 11 | 2.7 |
| 113 150 180 | 407 540 648 | 9.6 8.0 6.0 | 1 180 | 77.0 84.0 76.0 | 13.81 14.01 13.93 | 18.5 | 4.0 | |
| 139 184 221 | 500 664 796 | 14.5 12.1 9.1 | 1 450 | 77.0 84.0 76.0 | 25.6 26.0 25.9 | 30 | 6.4 | |
| 250HW-12 | 113 150 180 | 407 540 648 | 13.5 12.5 10.8 | 1180 | 84.0 | 21.8 | 30 | 4.0 |
| 300HW-5 | 220 | 792 | 5.0 | 970 | 83.0 | 12.99 | 15 | 4.0 |
| 300HW-8 | 165 220 264 | 594 792 950 | 9.6 8.0 6.0 | 970 | 78.0 85.0 77.0 | 19.90 20.30 20.10 | 22 | 4.0 |
| 300HW-12 | 165 220 264 | 594 792 950 | 13.5 12.5 10.8 | 970 | 85.0 | 31.72 | 37 | 4.0 |
| 100HW-8S (4HBC-35) | 27 25 19 | 98 90 70 | 7 8 10 | 2900 | 78 81 80 | 2.42 2.42 2.38 | 4/3 | 4.0 |
| 1 50HW-6 (6HBC-35) | 39 50 56 | 140 180 200 | 6.6 6.0 5.0 | 1450 | 75.0 82.0 78.0 | 3.36 3.59 3.52 | 7/5.5 | 3.0 |
| 49 62 69 | 174 223 248 | 10.1 9.2 7.7 | 1800 | 75.0 82.0 78.0 | 6.46 7.07 6.72 | 12/7.5 | 4.0 | |
| 200HW-10 (8HBC-35) | 83 100 125 | 300 360 450 | 8.0 7.0 5.1 | 1200 | 77.0 82.0 70.0 | 8.46 8.39 8.10 | 15/11 | 4.0 |
| 100 125 150 | 360 450 540 | 12.0 10.0 7.0 | 1450 | 77.0 82.0 77.0 | 15.3 14.9 14.4 | 30/18.5 | 5.0 | |
| 111 139 167 | 400 500 600 | 14.5 12.5 9.5 | 1600 | 77.0 82.0 77.0 | 20.5 20.2 20.2 | 40/30 | 5.5 | |
| 250HW-7 (10HBC-30) | 111 125 139 | 400 450 500 | 8.0 7.0 6.3 | 980 | 81.0 84.0 79.0 | 10.74 10.29 10.88 | 20/15 | 4.0 |
| 250HW-11 (10HBC- 40) | 111 125 139 | 400 450 500 | 5.5 4.8 4.0 | 980 | 3.0 78.4 73.6 | 7.2 7.5 7.4 | 15/11 | 4.0 |
| 153 180 200 | 550 650 720 | 13.2 11.6 9.8 | 1 450 | 82.3 83.4 80.0 | 24.0 24.6 24.0 | 40/30 | 6.0 | |
| 178 200 222 | 640 720 800 | 15.5 14.3 11.8 | 1600 | 82.3 83.4 79.3 | 32.8 32.8 32.4 | 60/37 | 6.5 | |
| 300HW-7 (12HBC2- 40) | 141 161 188 | 507 581 678 | 4.4 3.9 2.8 | 730 | 82.0 84.0 78.0 | 7.4 7.3 6.6 | 11 | 3.0 |
| 189 217 253 | 680 780 910 | 8.0 7.0 5.0 | 980 | 82.0 84.0 78.0 | 18.1 17.1 15.9 | 22 | 4.0 | |
| 251 288 335 | 902 1035 1207 | 14.1 12.3 8.8 | 1300 | 82.0 84.0 78.0 | 42.3 41.4 37.1 | 55 | 5.0 | |
| 350HW-8 (14HBC-40) | 186 207 228 | 670 745 819 | 5.2 4.4 3.7 | 730 | 85.0 85.5 81.5 | 11.16 10.44 10.15 | 20/15 | 4.5 |
| 250 278 306 | 900 1000 1100 | 9.4 8.0 6.7 | 980 | 85.0 85.5 81.5 | 27.10 25.50 24.66 | 40/30 | 5.0 | |
| 400HW-7 (16HBC-40) | 300 350 380 | 1080 1260 1368 | 7.8 6.8 6.2 | 730 | 84.0 86.0 84.0 | 27.31 27.13 27.50 | 40/30 | 4.0 |
| 403 470 510 | 1450 1692 1836 | 14.1 13.3 11.2 | 980 | 84.0 86.0 84.0 | 66.32 65.90 66.67 | 100/75 | 5.5 | |
| 400HW-8 | 310 | 1116 | 8.4 | 730 | 86.0 | 29.67 | 45 | 4.0 |
| 400HW-10 (16HBC-30) | 305 389 478 | 1098 1400 1720 | 11.5 9.94 7.55 | 730 | 83.0 86.0 83.5 | 41.5 44.3 42.4 | 66/55 | 4.0 |
| 409 522 641 | 1474 1880 2309 | 20.7 18.0 13.6 | 980 | 83.0 86.0 83.5 | 100.1 107.1 102 4 | 165/110 | 5.0 | |
| 500HW-6 (20HBC-40) | 469 550 606 | 1 690 1980 2180 | 7.6 6.2 5.3 | 580 | 83.4 87.0 80.4 | 41.9 38.4 39.1 | 60/55 | 5.5 |
| 591 692 762 | 2127 2492 2744 | 12.0 9.8 8.4 | 730 | 83.4 87.0 80.4 | 83.4 76.4 78.1 | 120/95 | 6.0 | |
| 650HW- -5 (26HBC- 50) | 736 920 1000 | 2650 3312 3600 | 7.15 5.1 4.0 | 485 | 86.0 85.0 79.0 | 60.0 54.1 49.6 | 90/75 | 5.5 |
| 896 3224 1120 | 4032 1216 4379 | 10.58 7.55 5.92 | 590 | 86.0 85.0 79.0 | 108.1 97.5 89.3 | 150/115 | 6.0 | |
| 650HW-7 (26HBC-40) | 850 944 1100 | 3060 3400 3960 | 7.4 6.5 5.0 | 450 | 85.0 88.0 85.0 | 72.5 68.4 63.4 | 120/90 | 5.3 |
| 915 1017 1185 | 3295 3663 4244 | 8.6 7.6 5.9 | 485 | 85.0 88.0 85.0 | 90.8 86.1 80.6 | 135/100 | 5.5 | |
| 1115 1238 1442 | 4014 4457 5193 | 12.7 11.18 8.59 | 590 | 85.0 88.0 85.0 | 163.6 154.2 142.9 | 221/180 | 6.0 | |
| 650HW-10 (26HBC- -30) | 889 1111 1389 | 3200 4000 5000 | 15.8 14.0 10.4 | 590 | 81.0 88.0 85.0 | 170.0 173.3 166.6 | 250/180 | 6.0 |
| 738 2658 923 | 3322 11544153 | 10.9 9.7 7.2 | 490 | 81.0 88.0 85.0 | 97.4 99.7 95.8 | 150/115 | 5.5 | |
| 800HW-10 | 1329 1661 1993 | 4784 5980 7176 | 14.8 12.2 8.6 | 490 | 85 88 80 | 227 225 210 | 310/250 | 5.5 |
| 800HW-16 | 1600 2000 2400 | 5760 7200 8640 | 21.5 17.7 12.5 | 500 | 85 88 80 | 397.0 394.6 367.0 | 550/450 | 6.5 |
