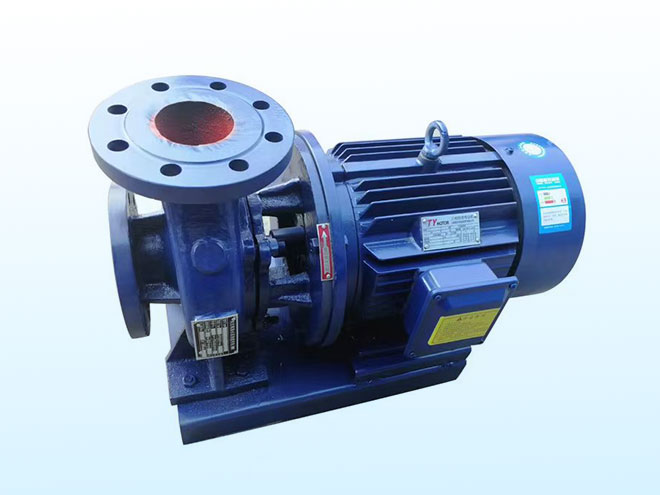

ISW管道离心泵
所属分类：清水泵
浏览次数：255
二维码：
添加时间：2024-05-29
简要说明：
浏览次数：255
二维码：
添加时间：2024-05-29
简要说明：
ISW卧式清水泵：供输送清水及物理化学性质类似于清水的其他液体之用。适用于工业和城市给排水，高层建筑增压送水，园林喷灌，消防增压，远距离输送，暖通制冷循环，浴室等冷暖水循环增压及设备配套，使用温度T≤80℃。
主要用途
1、ISW卧式清水泵：供输送清水及物理化学性质类似于清水的其他液体之用。适用于工业和城市给排水，高层建筑增压送水，园林喷灌，消防增压，远距离输送，暖通制冷循环，浴室等冷暖水循环增压及设备配套，使用温度T≤80℃。
2、ISWR卧式热水泵:适用于冶金、化工、纺织、造纸以及宾馆饭店等锅炉热水增压循环输送及城市采暖系统,使用温度T≤120℃。
结构图
性能参数表
| 型号 Type | 流量Q Flow | 扬程 (m) | 效率 (%) fficiency | 转速 (r/min) Speed | 电机功率 (kw) | 汽蚀余量(NPSH)r | 重量 (kg) Weight | |
| (m³/h) | (I/s) | |||||||
| 50-250(I)A | 16.4 23.4 30.5 | 4.56 6.5 8.47 | 71.5 70 67 | 39 50 52 | 2900 | 11 | 2.5 | 165 |
| 50-250(I)B | 15 21.6 28 | 4.17 6.0 7.78 | 61 60 57.4 | 38 49 54 | 2900 | 11 | 2.5 | 165 |
| 50-315(I) | 17.5 25 32.5 | 4.86 6.94 9.03 | 128 125 122 | 30 40 44 | 2900 | 30 | 2.5 | 310 |
| 50-315(I)A | 16.6 23.7 31 | 4.61 6.58 8.6 | 115 113 110 | 30 40 44 | 2900 | 22 | 2.5 | 245 |
| 50-315(I)B | .15.7 22.5 29.2 | 4.36 6.25 8.0 | 103 101 98 | 39 | 2900 | 18.5 | 2.5 | 215 |
| 50-315(I)C | 14.4 20.6 26.8 | 4.0 5.72 7.44 | 86 85 83 | 38 | 2900 | 15 | 2.5 | 195 |
| 65-100 | 17.5 .25 32.5 | 4.86 6.94 9.03 | 13.7 12.5 10.5 | 67 69 69 | 2900 | 1.5 | 2.5 | 46 |
| 65-100A | 15.6 22 3 29 | 4.3 6.19 8.1 | 11 10 8.4 | 65 67 68 | 2900 | 1.1 | 2.5 | 41 |
| 65-125 | 17.5 25 32.5 | 4.86 6.94 9.03 | 21.5 20 18 | 60 68 67 | 2900 | 3 | 2.5 | 58 |
| 65-125A | 15.6 22.3 29 | 4.33 6.19 8.1 | 17 16 14.4 | 58 66 65 | 2900 | 2.2 | 2.5 | 49 |
| 65-160 | 17.5 25 32.5 | 4.86 6.94 9.03 | 34.4 32 27.5 | 54 63 60 | 2900 | 4 | 2.5 | 75 |
| 65- 160A | 16.4 23.4 30.4 | 4.56 6.5 8.44 | 3028 24 | 54 62 59 | 2900 | 4 | 2.5 | 75 |
| 65-160B | 15.0 21.6 28 | 4.17 6.0 7.78 | 26 24 20.6 | 58 | 2900 | 3 | 2.5 | 63 |
| 65-200 | 17.5 25 32.5 | 4.86 6.94 9.03 | 52.7 50 45.5 | 49 58 59 | 2900 | 7.5 | 2.5 | 107 |
| 65-200A | 16.4 23.5 30.5 | 4.56 6.53 8.47 | 46.4 44 40 | 48 57 58 | 2900 | 7.5 | 2.5 | 107 |
| 65- 200B | 15.2 21.8 28.3 | 4.22 6.06 7.86 | 40 38 34.5 | 55 | 2900 | 5.5 | 2.5 | 100 |
| 65-250 | 17.5 25 32.5 | 4.86 6.94 9.63 | 82 86 76.5 | 39 50 52 | 2900 | 15 | 2.5 | 180 |
| 65-250A | 16.4 23.4 30.5 | 4.56 6.5 8.47 | 71.5 70 67 | 39 50 52 | 2900 | 11 | 2.5 | 170 |
| 65-250B | 15 21.6 28 | 4.17 6.0 7.78 | 61 60 57.4 | 38 49 54 | 2900 | 11 | 2.5 | 170 |
| 65-315 | 17.5 25 32.5 | 4.86 6.94 9.63 | 127 125 122 | 32 40 44 | 2900 | 30 | 2.5 | 320 |
| 65-315A | 16.6 23.7 31 | 4.61 6.58 8.6 | 115 113 110 | 32 46 44 | 2900 | 22 | 2.5 | 255 |
| 65-315B | 15.7 25 32.5 | 4.36 6.25 8.0 | 103 101 98 | 39 | 2900 | 18.5 | 2.5 | 225 |
| 65-315C | 14.4 20.6 26.8 | 4.0 5.72 7.44 | 86 85 83 | 38 | 2900 | 15 | 2.5 | 205 |
| 65- 100(I|) | 35 50 65 | 9.72 13.9 18.1 | 13.8 12.5 10 | 67 73 70 | 2900 | 3 | 3.0 | 63 |
| 65- 100(I)A | 31.3 44.7 58 | 8.7 12.4 16.1 | 11 10 8 | 66 73 69 | 2900 | 2.2 | 3.0 | 53 |
| 65-125(I) | 35 50 65 | 9.72 13.9 18.1 | 22 20 17 | 67 72.5 70 | 2900 | 5.5 | 3.0 | 99 |
| 65-125(I)A | 31.3 45 58 | 8.7 12.5 16.1 | 17.5 16 13.6 | 66 71 69 | 2900 | 4 | 3.0 | 78 |
| 65-160(I) | 35 50 65 | 9.72 13.9 18.1 | 35 32 28 | 63 71 70 | 2900 | 7.5 | 3.0 | 103 |
| 65-160(I)A | 32.7 46.7 61 | 9.1 13.0 16.9 | 30.6 28 24 | 62 70 69 | 2900 | 7.5 | 3.0 | 103 |
| 65-160(I)B | 30.3 43.3 56.3 | 8.4 12.0 15.6 | 26 24 21 | 69 | 2900 | 5.5 | 3.0 | 97 |
| 65-200(I) | 35 50 65 | 9.72 13.9 18.1 | 53.5 50 46 | 55 57 68 | 2900 | 15 | 3.0 | 176 |
| 65-200(I)A | 32.8 47 61 | 9.1 13.1 16.9 | 47 44 40 | 54 66 67 | 2900 | 11 | 3.0 | 166 |
| 65-200(I)B | 30.5 43.5 56.6 | 8.5 12.1 15.7 | 40.6 3 8 33.4 | 65 | 2900 | 7.5 | 3.0 | 114 |
| 65-250(I) | 35 50 65 | 9.72 13.9 18.1 | 83 80 72 | 52 59 60 | 2900 | 22 | 3.0 | 235 |
| 65-250(I)A | 32.5 46.7 61 | 9.0 13.0 16.9 | 73 70 63 | 52 59 60 | 2900 | 18.5 | 3.0 | 205 |
| 65-250(1)B | 30 43.3 46 | 8.3 12.0 15.6 | 62 60 54 | 58 | 2900 | 15 | 3.0 | 180 |
| 65-315(I) | 35 50 65 | 9.72 13.9 18.1 | 128 125 121 | 44 54 57 | 2900 | 37 | 3.0 | 350 |
| 65-315(I)A | 32.5 46.5 60.5 | 9.0 12.9 16.8 | 112.6 110 106.4 | 43 54 57 | 2900 | 30 | 3.0 | 335 |
| 65-315(I)B | 31 44.5 58 | 8.6 12.4 16.1 | 102.5 160 98 | 53 | 2900 | 30 | 3.0 | 335 |
| 65-315(I)C | 29 41 53.6 | 8.1 11.4 14.9 | 87 85 83 | 51 | 2900 | 22 | 3.0 | 270 |
| 80- 100 | 35 50 65 | 9.72 13.9 18.1 | 13.8 12.5 10 | 67 73 78 | 2900 | 3 | 3.0 | 63 |
| 80-100A | 31.344.7 58 | 8.5 12.5 16.1 | 11 10 8 | 66 72 69 | 2900 | 2.2 | 3.0 | 54 |
| 80-125 | 30 50 65 | 9.72 13.9 18.1 | 22 20 17 | 67 72.5 70 | 2900 | 5.5 | 3.0 | 99 |
| 80-125A | 31.3 45 58 | 8.7 12.5 16.1 | 17.5 16 13.6 | 66 71 69 | 2900 | 4 | 3.0 | 79 |
| 80-160 | 35 50 65 | 9.72 13.9 18.1 | 35 32 28 | 63 71 70 | 2900 | 7.5 | 3.0 | 105 |
| 80-160A | 32.7 46.7 61 | 9.1 13.0 16.9 | 30.6 28 24 | 62 70 69 | 2900 | 7.5 | 3.0 | 105 |
| 80-160B | 30.3 43.3 56.3 | 8.4 12.0 15.6 | 26 24 21 | 69 | 2900 | 5.5 | 3.0 | 98 |
| 80-200 | 35 50 65 | :9.72 13.9 18.1 | 53.5 50 46 | 55 67 68 | 2900 | 15 | 3.0 | 175 |
| 80-200A | 32.8 47 61 | 9.1 13.1 16.9 | 47 44 40 | 54 66 67 | 2900 | 11 | 3.0 | 165 |
| 80-200B | 30.5 43.5 56.6 | 8.5 12.1 15.7 | 40 6 38. 33.4 | 65 | 2900 | 7.5 | 3.0 | 115 |
| 80-250 | 35 50 65 | 9.72 13.9 18.1 | 83 80 72 | 53 59 60 | 2900 | 22 | 3.0 | 240 |
| 80-250A | 32.5 46.7 61 | 9.0 13.0 16.9 | 73 70 63 | 52 59 60 | 2900 | 18.5 | 3.0 | 210 |
| 80-250B | 30 43.3 56 | 8.3 12.0 15.6 | 62 60 54 | 58 | 2900 | 15 | 3.0 | 185 |
| 80-315 | 35 50 65 | 9.72 13.9 18.1 | 128 125 122 | 43 54 57 | 2900 | 37 | 3.0 | 355 |
| 80-315A | 32.5 46.5 60.5 | 9.0 12.9 16.8 | 112.6 110 107.4 | 43 54 57 | 2900 | 30 | 3.0 | 340 |
| 80-315B | 31 44.5 58 | 8.6 12.4 16.1 | 102.5 100 98 | 53 | 2900 | 30 | 3.0 | 340 |
| 80-315C | 29 41 53.6 | 8.1 11.4 14.9 | 98 85 83 | 51 | 2900 | 22 | 3.0 | 275 |
| 80-350 | 35 50 65 | 9.72 13.9 18.1 | 146 150 142 | 55 66 67 | 2900 | 55 | 3.0 | 570 |
| 80-350A | 31 44.5 58 | 8.6 12.4 16.1 | 138.4 142 134.8 | 65 | 2900 | 45 | 3.0 | 470 |
| 80-350B | 29 41 53.6 | 8.1 11.4 14.9 | 131.4 135 127.8 | 63 | 2900 | 37 | 3.0 | 440 |
| 80-100(I) | 70 100 130 | 19.4 27.8 36.1 | 13.6 12.5 | 66 76 75 | 2900 | 5.5 | 4.5 | 108 |
| 80-100(I)A | 62.6 89 116 | 17.4 24.7 32.2 | 11 10 8.8 | 64 72 72 | 2900 | 4 | 4.5 | 87 |
| 80-125(I) | 70 100 130 | 19.4 27.8 36.1 | 23.5 20 14 | 70 76 65 | 2900 | 11 | 4.5 | 163 |
| 80-125(1)A | 626 89 116 | 17.4 24.7 32.2 | 19 16 11 | 68 74 65 | 2900 | 7.5 | 4.5 | 113 |
| 80-160(1) | 70 100 130 | 19.4 27.8 36.1 | 36.5 32 24 | 70 76 65 | 2900 | 15 | 4.5 | 184 |
| 80- 160(I)A | 65.4 93.5 121.6 | 18.2 26. 33.8 | 32 28 21 | 68 74 67 | 2900 | 11 | 4.5 | 174 |
